Turbine-Temps

Use this tab to define the high and low temperature shutdown behavior. This dialog provides room for both the standard temperature shutdown behavior of the turbine as well as the option to add high and low temperature packages. The package checkboxes determine which group of settings are used.

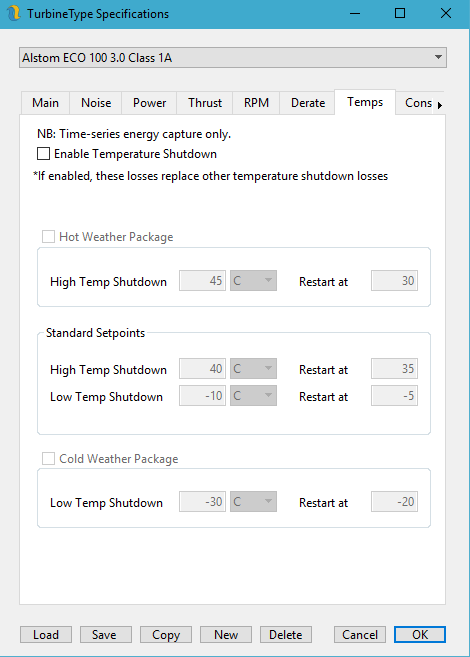

Figure 100: Turbine Type Temperature Shutdown Tab

• Low Temperature Shutdown. This is the value of temperature at which the turbine shuts down. It is only used in the time series energy capture. The “Restart at” value allows the calculation of temperature shutdown hysteresis due to differences in shut down and start up temperatures.

• High Temperature Shutdown. This is the value of temperature at which the turbine shuts down. It is only used in the time series energy capture. The “Restart at” value allows the calculation of temperature shutdown hysteresis due to differences in shut down and start up temperatures.
